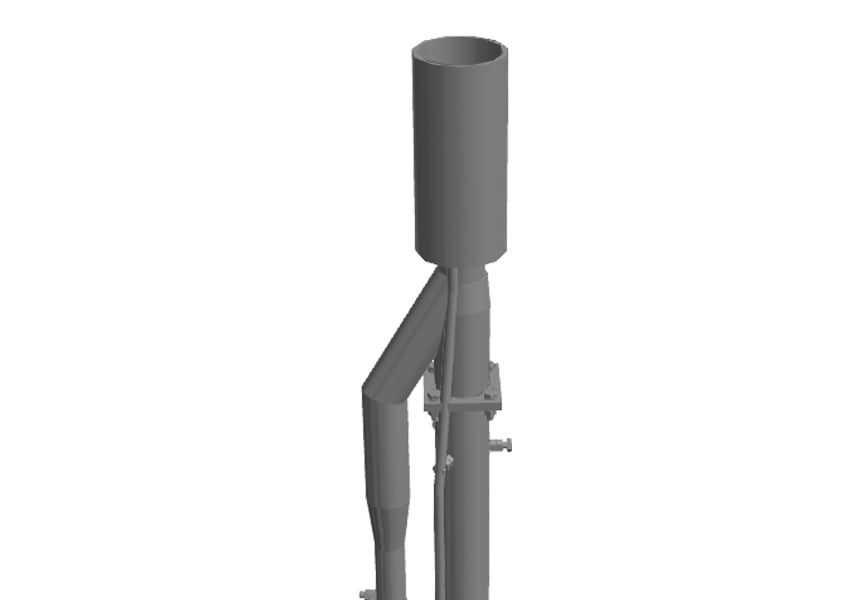

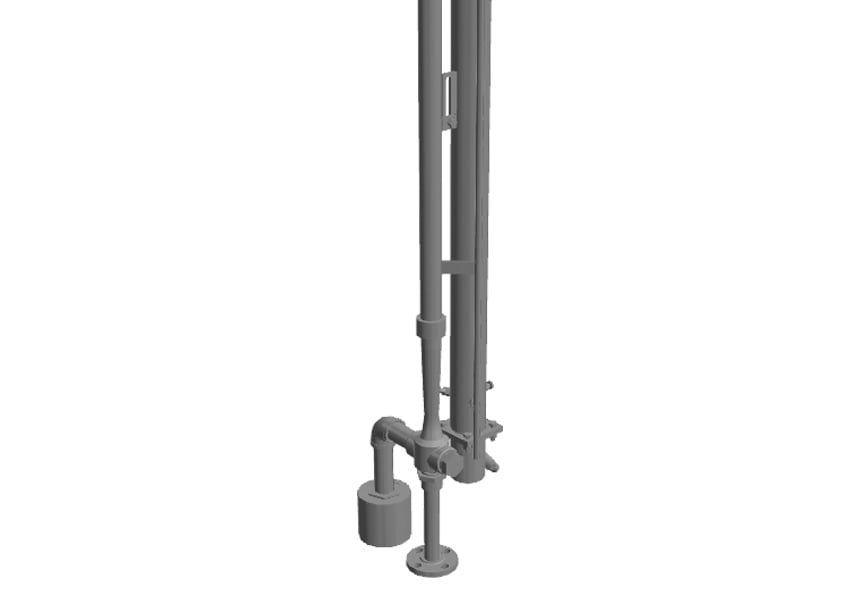

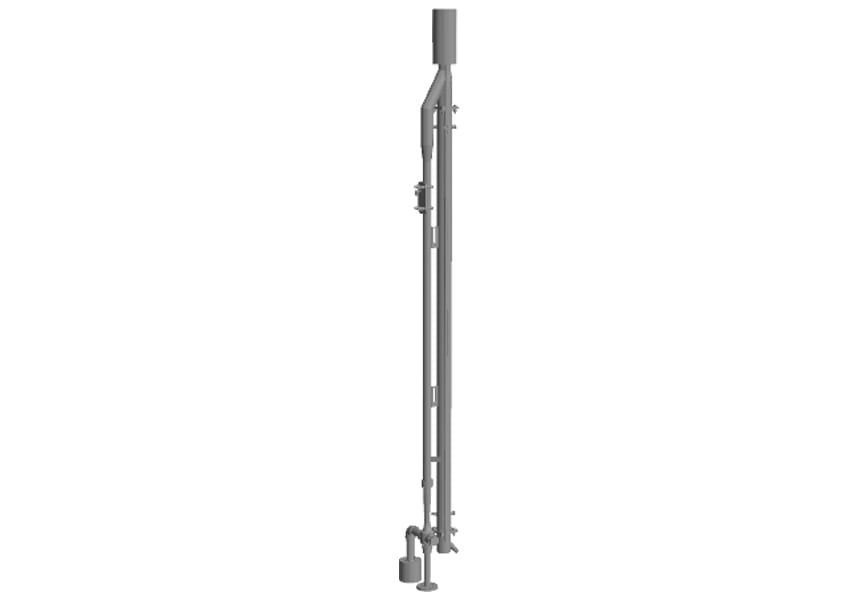

SP-3.0-01 pilot burner is designed with single source of ignition, high voltage form of electronic ignition system – manually or automatically via PLC control.

The high voltage systems rely on 8 000 – 10 000 volt discharges causing a spark across an air gap to light the pilot.

Each pilot is pre-installed with single or dual element type-K thermocouple(s) to monitor the temperature of pilot and signal PLC with the flare status. Pilot burner will automatically reignite once the PLC system detects off flaring – reliable to maintain continuous flaring.

Pilot burner components includes thermocouple, electronic spark plug and pilot venturi.
